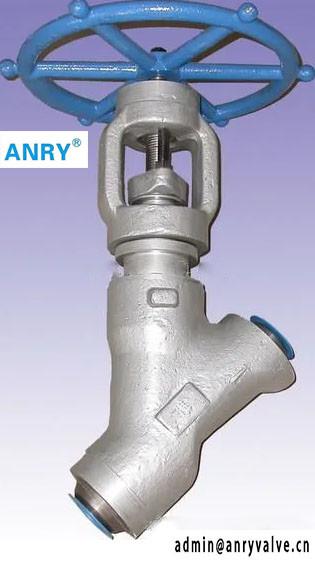

    SW BW NPT Forged Steel Globe Valve 800Lb For Flow Control

    Ask Lasest Price
    Brand Name : ANRY
    Model Number : J61H
    Certification : API,CE,ISO
    Price : Negotiable
    Delivery Time : 7 DAYS
    Payment Terms : L/C, T/T
    Supply Ability : 10000pcs/month
    • Product Details
    • Company Profile

    SW BW NPT Forged Steel Globe Valve 800Lb For Flow Control

    Y Type SW BW NPT Forged Seel A105 F304 F316 Stellite Overlay Disc Globe Valve 800Lb
    Y Type Globe Valve 800Lb
    Standard Material Specifications
    NO.
    Part Name
    CS to ASTM
    AS to ASTM
    SS to ASTM
    Type A105
    Type F22
    Type F304(L)
    Type F316(L)
    1
    Body
    A105
    A182 F22
    A182 F304(L)
    A182 F316(L)
    2
    Disc
    A276 420
    A276 304
    A276 304(L)
    A276 316(L)
    3
    Stem
    A182 F6
    A182 F304
    A182 F304(L)
    A182 F316(L)
    4
    Gasket
    Corrugated SS + graphite
    SS + PTFE
    5
    Bonnet
    A105
    A276 304
    A276 304(L)
    A276 316(L)
    6
    Bonnet Bolt
    A193 B7
    A193 B16
    A193 B8
    A193 B8M
    7
    Stem Packing
    Flexible Graphite
    PTFE
    8
    Gland
    A276 410
    A182 F304(L)
    A182 F316(L)
    9
    Gland Flange
    A216 WCB
    A351 CF8
    10
    Handwheel
    A197
    11
    Nameplate
    SS
    12
    H.W.Nut
    A194 2H
    A194 4
    A194 8
    A194 8M
    13
    Yoke Nut
    A276 410
    14
    Gland Nut
    A194 2H
    A194 4
    A194 8
    A194 8M
    15
    Gland Eyebolt
    A193 B7
    A193 B16
    A193 B8
    A193 B8M
    16
    Pin
    A276 420
    A276 304
    Suitable Medium
    W.O.G.etc
    W.O.G.etc
    HNO3,CH3OOH etc
    Suitable Temperature
    -29~425
    -29~550
    -29~180
    Note: Other materials are available upon request.

    Technical parameters :
    Dimensions (mm) and Weights (Kg)

    NPS
    1/2"
    3/4"
    1"
    1-1/4"
    1-1/2"
    2"
    L
    98
    111
    120
    140
    140
    170
    H(OPEN)
    175
    215
    254
    305
    305
    365
    W
    100
    125
    160
    160
    180
    200
    Weights
    5
    6.3
    7.6
    9.8
    13.8
    14.0
